Variable speed drive ADL500

Variable speed drive ADL500

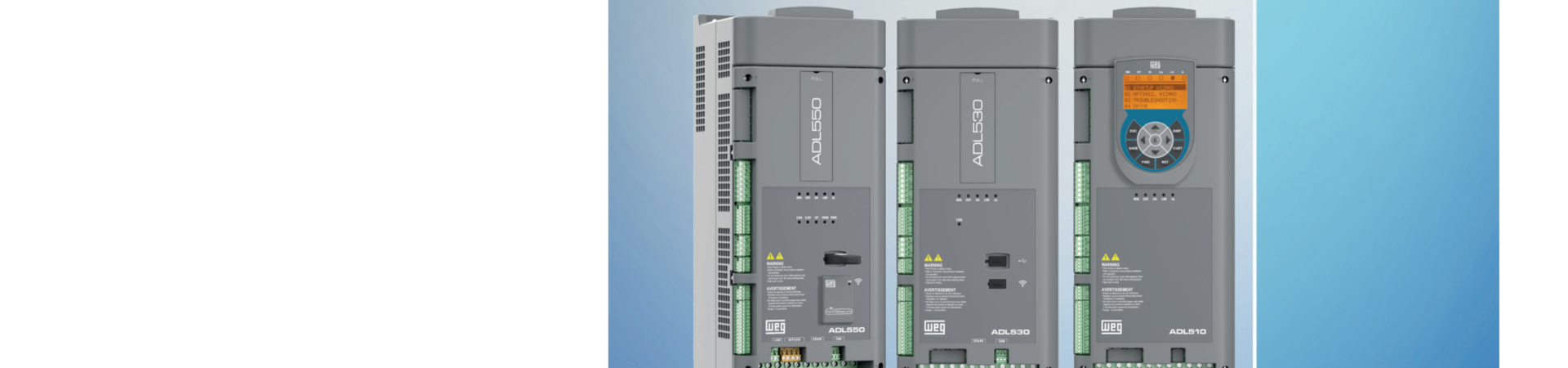

The ADL500 family is composed of three lines: ADL550, ADL530, and ADL510. Designed to meet the demands of high, medium, and low-rise building applications, not to mention the building retrofit market. The new ADL500 series also offers the latest in functional safety, energy savings, and connectivity.

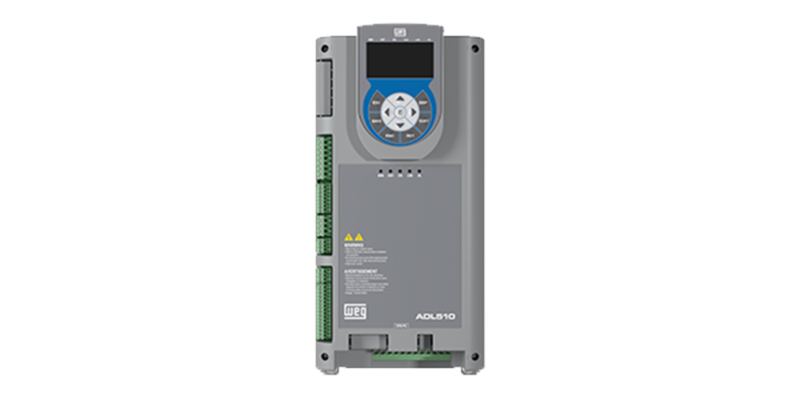

ADL510- Low Rise

ADL510- Low Rise
ADL510- Low Rise

Designed to be simple to apply and easy to install, it is compatible with typical low-rise or retrofit asynchronous motors, and can be used in either open or closed loop. The ADL510 is a versatile inverter ready for use when servicing elevator systems.

Power

  • ADL510-4: 3ph  400V (-15% / +10%) @50/60Hz

Power Range

  • ADL510-4: 4kW (5Hp) … 15kW (20Hp)

Resources

  • Motor type: Gear motor (asynchronous)
  • Control: Sensorless scalar control (SSC), field-guided control CL (Asyn FOC)
  • Encoder: TTL/HTL incremental digital and sinusoidal interface
  • Communication: Modbus TCP (RJ45 port)
  • Overload: 183% x 10s
  • Battery power supply: -EMS version (48-96Vdc) for emergencies
  • Configuration, commissioning, optimization, and troubleshooting wizards
  • Certification: CE, cULus, EAC, EN81-20, EN81-50, EN 12015, EN 12016

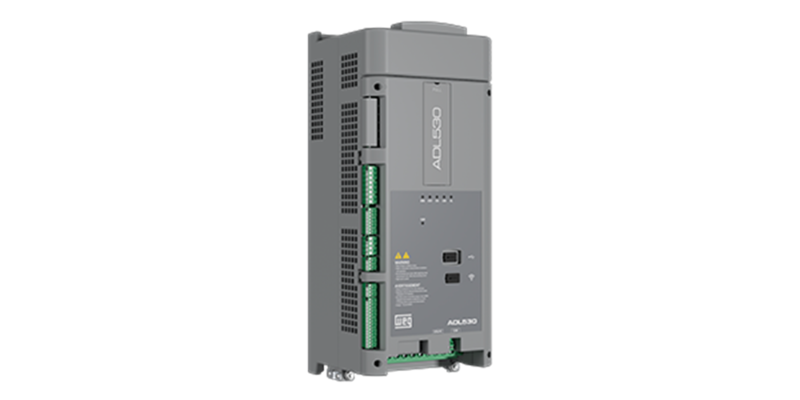

ADL530- Med Rise

ADL530 medium rise
ADL530 medium rise

Designed to control geared and gearless motors. It has in its Standard version a universal encoder (endat, sincos, biss and digital incremental) and an RJ45 communication port, bringing versatility and flexibility to the ADL530.

Power Supply

  • ADL530-4: 3ph 230-400-480V (-15% / +10%) @50/60Hz

Power Range

  • ADL530-4: 4kW (5Hp) … 15kW (20Hp)

Properties:

  • Motor Type: Geared and Gearless
  • Encoder: Universal interface for various encoders (TTL/HTL Incremental digital and sinusoidal / Endat / Biss / SinCos / SSI)
  • Functions: Energy savings calculator, Anti-roll back
  • Communication: Modbus TCP (RJ45 port) for direct connection or LAN, CANopen 301 and 417
  • Intelligent Communication: USB multifunction port, optional WiFi module for WEG_Liftouch application interface
  • Overload: 183% x 10s
  • Certifications: CE, cULus, EAC, EN81-20, EN81-50, EN 12015, EN 12016
  • Dedicated configurators for elevator applications.



ADL550- High Rise

ADL550 high rise
ADL550 high rise

Specifically designed for installations requiring high levels of performance with advanced safety features such as OFF SIL3 safe torque (no contactors), safe brake testing (SBT). The ADL550 offers high technology for applications in buildings with more than 10 floors and a speed profile of more than 1.2 m/s, as well as compatibility with regenerative power systems.

Power supply

  • ADL550-4: 3ph 230-400-480V (-15% / +10%) @50/60Hz

Power range

  • ADL550-4: 4kW (5Hp) … 15kW (20Hp)

Properties:

  • Motor Type: Geared and Gearless
  • Encoder: Universal interface for various encoders (TTL/HTL Incremental digital and sinusoidal / Endat / Biss / SinCos / SSI)
  • Functions: Energy savings calculator, Anti-roll back
  • Communication: Modbus TCP (RJ45 port) for direct connection or LAN, CANopen 301 and 417
  • Intelligent Communication: USB multifunction port, optional WiFi module for WEG_Liftouch application interface
  • Overload: 183% x 10s
  • Complete package in sefuracce.
  • Certifications: CE, cULus, EAC, EN81-20, EN81-50, EN 12015, EN 12016
  • Dedicated configurators for elevator applications.



Connectivity

USB

  • Engine Type: Geared (asynchronous)
  • Control: Sensor Scalar Control (SSC), CL (Asyn FOC) Field Oriented Control
  • Encoder: Incremental Digital Interface TTL/HTL and Synoidal
  • Communication: Modbus TCP (port RJ45)
  • Overload: 183% x 10s

WIFI

  • Plug-in for Wi-Fi module option
  • Drive Link for wireless communication via APP
  • WEG_Liftouch and WEG_DriveLabs

Ethernet Port (modbus tcp)

  • Direct connection to a PC
  • LAN

Canopen Port

  • Canopen 301
  • Canopen Lift 417 * (under development)
