Description

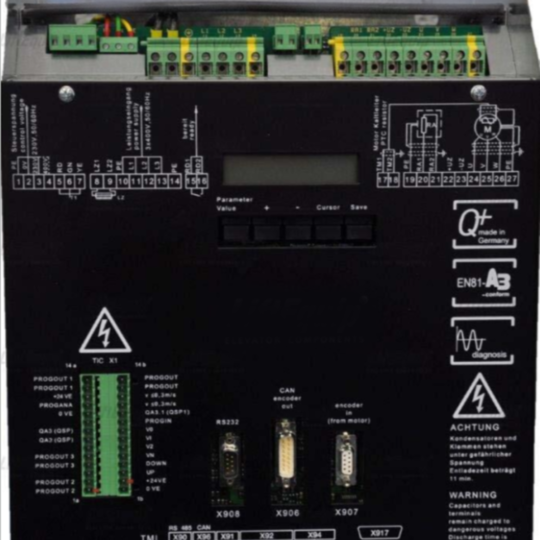

Fequency inverter MFC21-15 SM V1

Type: 18A / 30A; Version: 11 kW Built-in type (prepared for mounting in cabinet), parallel-, DCP3- and DCP4- interface (DCP usable until 1,6 m/s, adjustment with control manufacturer is necessary), with display, added: power filter (3*30A 480VAC), power choke (16A 3*1,2mH), braking resistor (22R/1,9 kW)

Synchronous and asynchronous Eprom are included in the scope of delivery. Therefore the inverter can also be used as MFC 20-15 ASM V1 (MFC20-15).

This inverter is an ideal replacement for the MFC20-09 or MFC21-09 as well as MFC20-12 or MFC21-12.

DIMENSIONS:

• A 740 mm
• B 500 mm
• C 470 mm
