Description

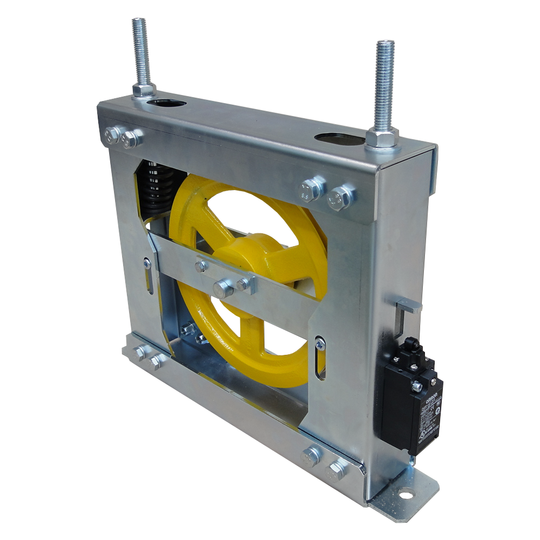

COMPACT 200 tension weight is a product designed to provide the tension required for the rope going through a standard overspeed governor’s groove. Unlike the usual tensioning pulleys, which use masses to generate tension, these masses have been removed from  COMPACT pulleys replacing them with springs.

This is a very compact design, with minimum dimensions, perfect to be used in installations with a reduced headroom and pit.

DYNATECH’s COMPACT tension weight is a product that is supplied pre-assembled. This allows the installer to save time when assembling it in the installation.

Sheave diameter: 200 mm

It is supplied by default with:

• Rope slackening contact.
• Turnbuckle: That will make rope re-tensioning easier if required.
• Casting pulley.
• Rope out protection system.

Hardened Groove governors are recommended when using with this device; especially in lifts with long travels or with rated speeds of 1.6 m/s or higher.

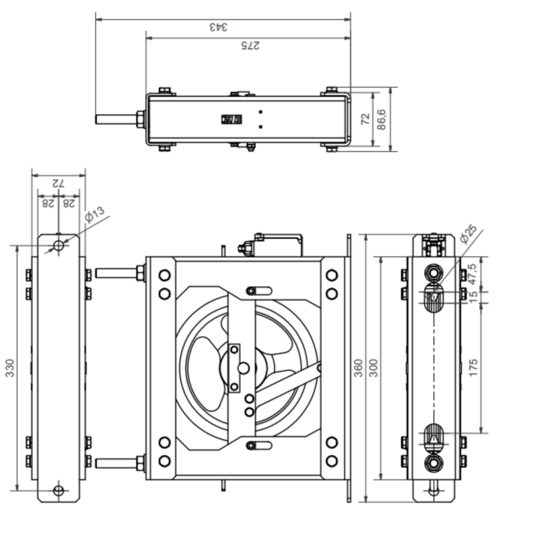

DIMENSIONS:

• A 343 mm
• B 86,6 mm
• C 360 mm
